Non-asbestos Sheet

Non-asbestos Sheet

  • Item No. 330
  • Product description: Non-asbestos Sheet from FEITE Sealing Sheets
  • INQUIRY

DESCRIPTION:

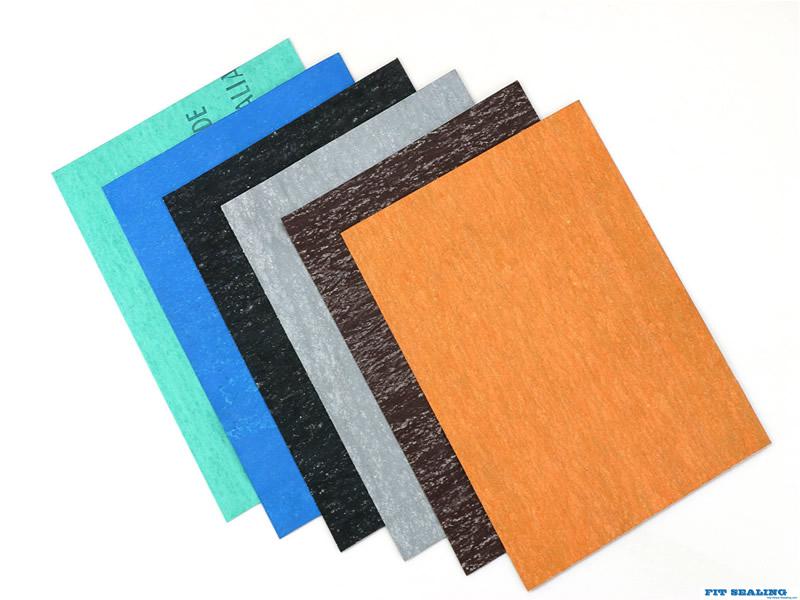

NCAF Non-asbestos sheet is made from synthetic fibre, natural rubber, filling material and dye, compressed and calendered under high temperature and pressure into a sheet form. It eliminates asbestos-rubber sheet essentially and thoroughly.

Non-asbestos rubber Sheet (NCAF)

PARAMETER:

Item
Style
NAS200
NAS300
NAS400
Density
g/cm3
1.8~2.0
1.8~2.0
1.8~2.0
Tensile strength ≥Mpa
6
9
12.5
Compressibility
≥%
12±5
12±5
12±5
Recovery
≥%
40
45
45
Aging
coefficient
0.9
0.9
0.9
Stress relaxation ≤%
45
45
45
Steam Sealing
Tmax: 200℃
Pmax: 2~3Mpa
30min
no shock
Tmax: 300℃
Pmax: 4~5Mpa
30min
no shock
Tmax: 400℃
Pmax: 8~9Mpa
30min
no shock
Tmax:  ℃
200
300
400
Pmax:  Mpa
1.5
3.0
5.0
Resistance
to media
Water, seawater, steam, fuel, gases, salt solutions
and many other media.
Normal colour: Black with some white, Blue or Green-white etc.
Available with tin steel, copper, SS304 etc. wire mesh insertion
Also available with anti-stick or graphite coating
With your logo on request.

DIMENSIONS:

Thickness:  0.4~5mm
2000×1500mm; 1500×4000mm; 1500×1500mm; 1350x1500mm
1500×1000mm; 1270×1270mm; 3810×1270mm
